Description

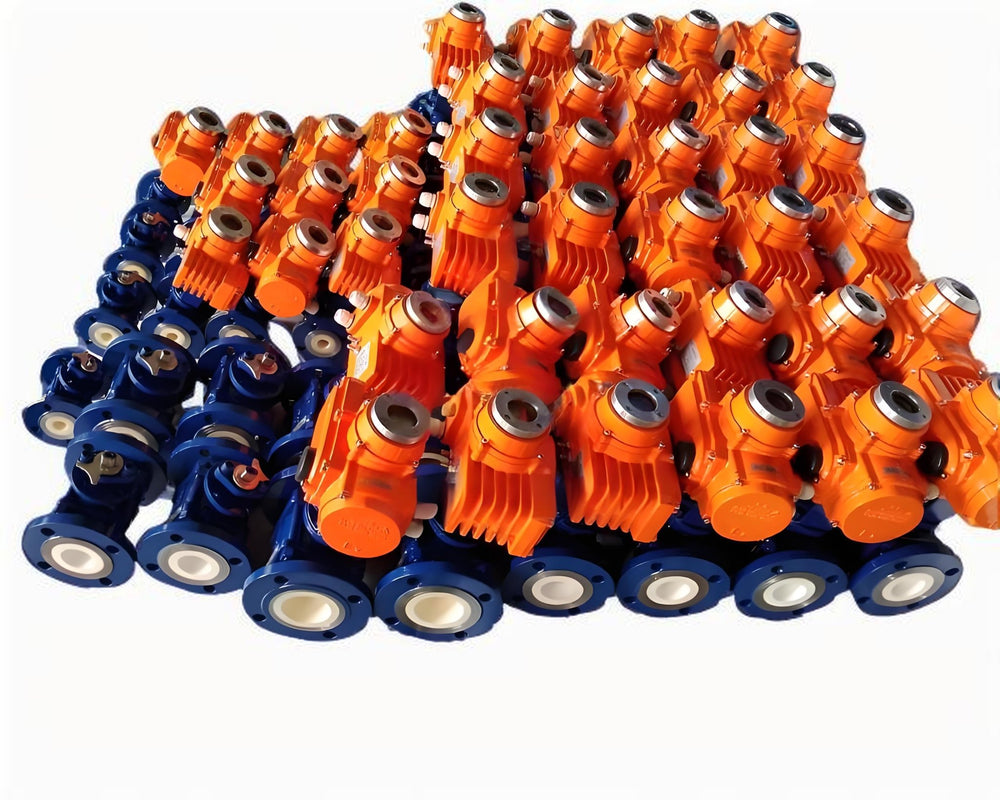

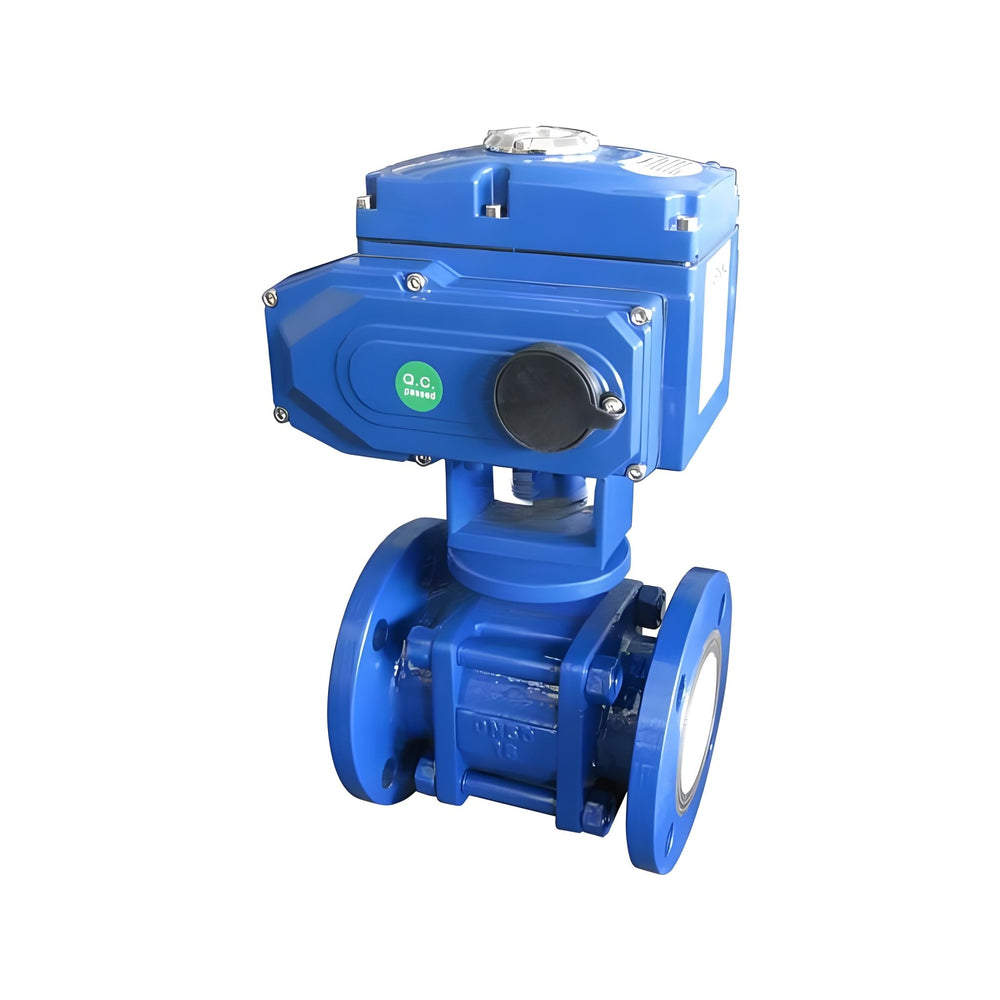

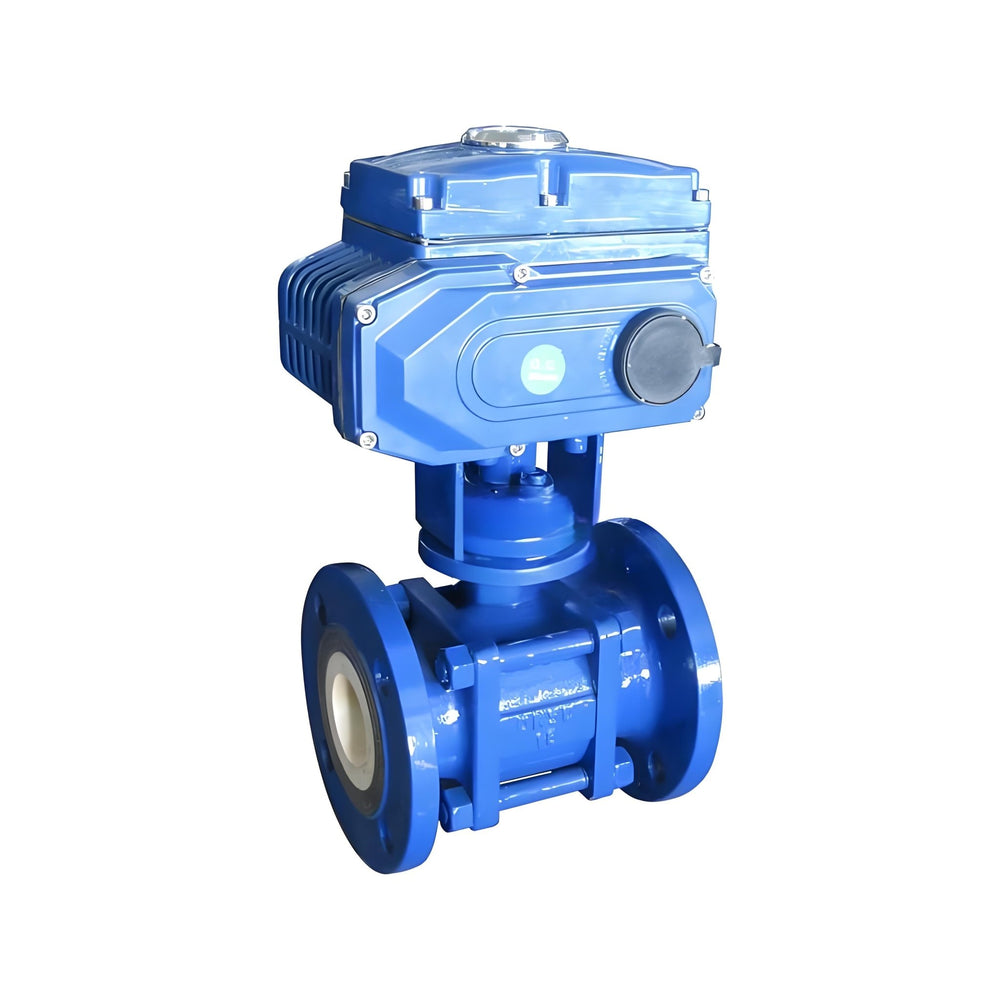

xThe Compact Electric Ceramic Ball Valve is a high-performance, miniaturized, and cost-effective electric valve powered by 220V AC, specifically designed for space-constrained environments without 380V power supply.
The valve body is available in WCB carbon steel, CF8 (304 SS), or CF8M (316 SS). It features a high-hardness zirconia (ZrO₂) ceramic ball and alumina (Al₂O₃) ceramic sealing seat, delivering exceptional wear and corrosion resistance. Ideal for automated control applications such as automated production lines, laboratories, and small-scale piping systems.
Technical Specifications
Parameter |
Specification |
Nominal Diameter |
DN25–DN100 (1"–4") |
Pressure Rating |
1.0MPa, 1.6MPa, 2.5MPa, 150Lb (Class 150) |
Temperature Range |
-40°C (non-freezing) to 180°C (-40°F to 356°F) |
Body Material |
WCB (Carbon Steel), CF8 (304 SS), CF8M (316 SS) |
Ball Material |
Zirconia (ZrO₂) Ceramic |
Seat Material |
Alumina (Al₂O₃) Ceramic |
Flow Path Liner |
Alumina (Al₂O₃) Ceramic |
Connection Type |
Flanged |
Flange Standards |
GB/T9113, JB/T821, ASME/ANSI B16.5a |
Actuation Type |
Compact Electric Actuator |
Control Power Supply |
220V AC |
