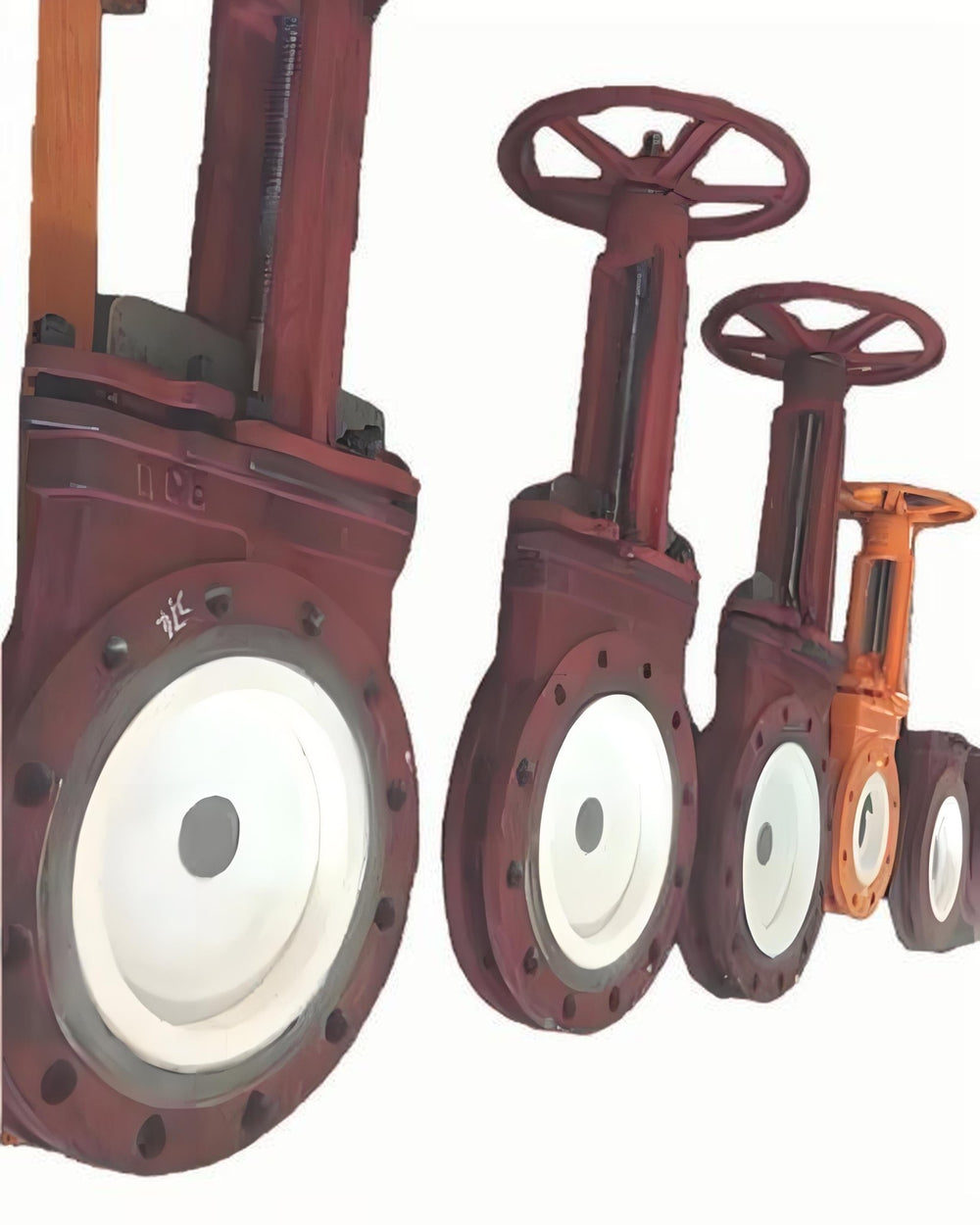

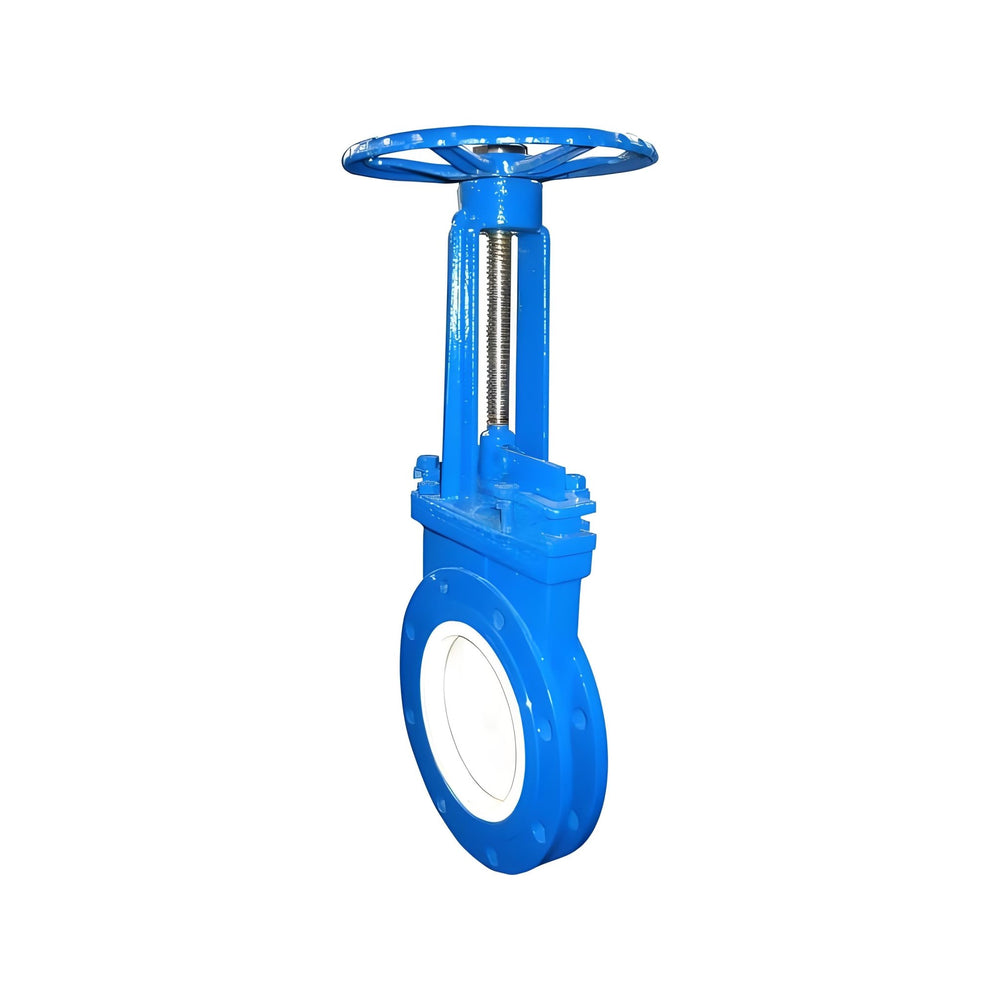

Manual Ceramic Knife Gate Valve

The Manual Ceramic Knife Gate Valve is specifically designed for handling highly abrasive and high-concentration solid-liquid mixture...
Vendor: Bavolr
Availability: In stock
Please hurry! Only 200 left in stock
10 customers are viewing this product

Free Shipping

Description
Description
x

The Manual Ceramic Knife Gate Valve is specifically designed for handling highly abrasive and high-concentration solid-liquid mixture media. The gate and sealing valve seat are lined with wear-resistant ceramics, providing excellent wear resistance. The gate extends outside the valve body, ensuring unobstructed operation even when the valve cavity is filled with media. Featuring a simple structure, lightweight design, and easy installation, it is suitable for solid material and slurry conveying systems in industries such as mining, papermaking, wastewater treatment, and power generation.

Product Parameters

Parameter

Specification

Nominal Diameter

DN50–DN500 (2"–20")

Pressure Rating

1.0MPa, 1.6MPa, 150Lb

Temperature Range

-29~200°C

Valve Body Material

WCB, 304, 316

Gate Material

Alumina Ceramic (Al₂O₃)

Sealing Material

Alumina Ceramic (Al₂O₃)

Connection Type

Wafer-Type

Flange Standard

GB/T9113, JB/T82.1, ASME/ANSI B16.5a

Operation Mode

Handwheel, Bevel Gear
