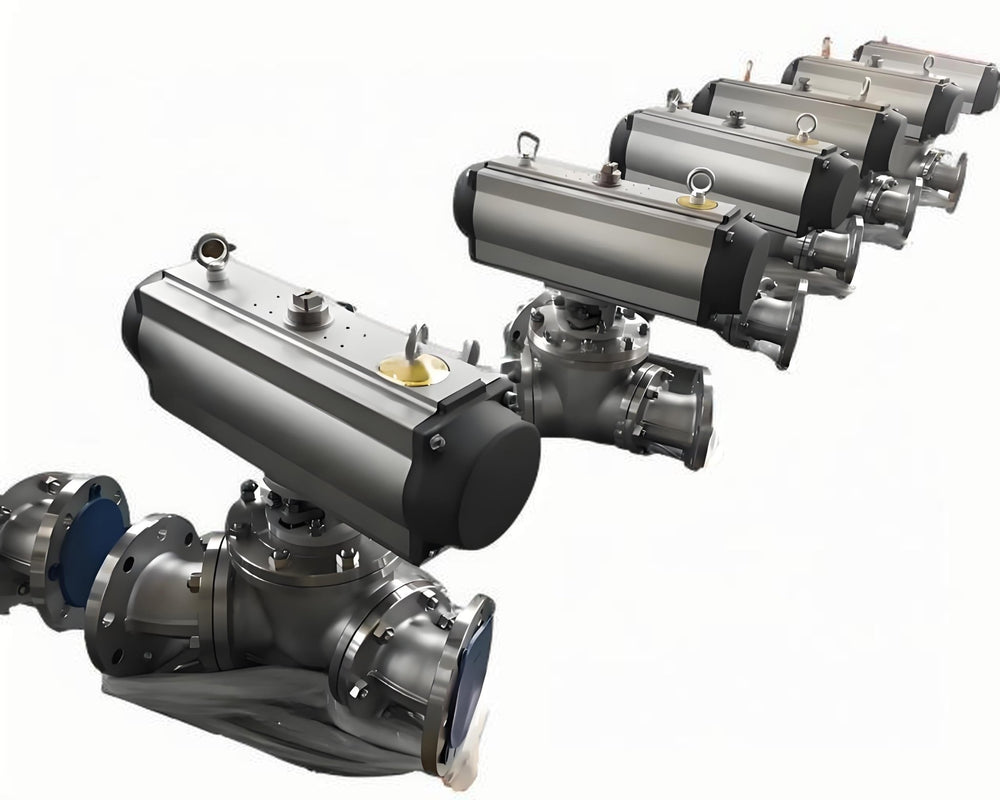

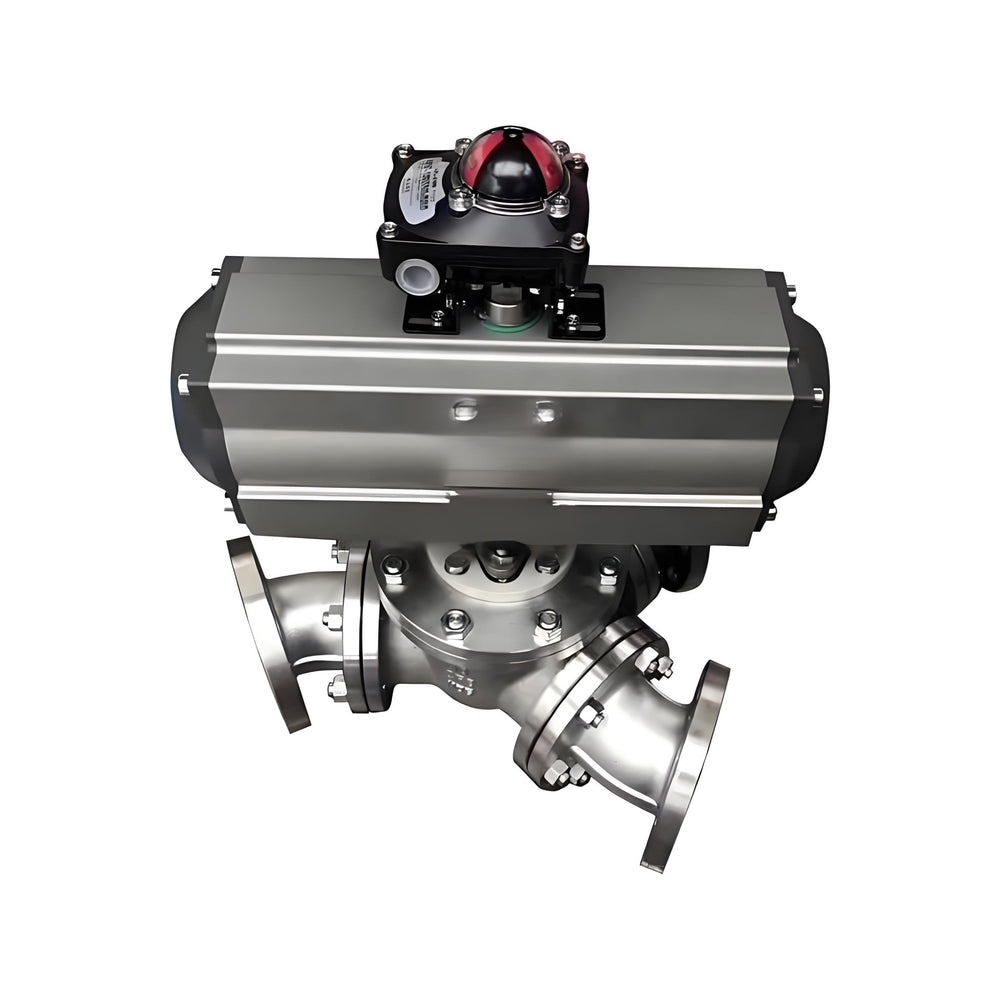

Pneumatic Y-Type Three-Way Ball Valve (135°)

The Pneumatic Y-Type Three-Way Ball Valve (135°) is a high-performance fluid diverting device, featuring a 135° angle between...
Vendor: Bavolr
Availability: In stock
Please hurry! Only 500 left in stock
10 customers are viewing this product

Free Shipping

Description
Description
x

The Pneumatic Y-Type Three-Way Ball Valve (135°) is a high-performance fluid diverting device, featuring a 135° angle between inlet and outlet ports. Compared to 90° L-type three-way ball valves, its smooth, streamlined flow path minimizes pressure drop, making it ideal for diverting and conveying powder, granular, and particulate media.

Equipped with a pneumatic actuator, the valve enables efficient automated operation for precise process control.

Technical Specifications

Parameter

Specification

Nominal Diameter

DN50–DN300 (2"–12")

Pressure Rating

1.0MPa, 1.6MPa, 2.5MPa, 150Lb (Class 150)

Temperature Range

-29°C to 180°C (-20°F to 356°F)

Body Material

WCB (Carbon Steel), CF8 (304 SS), CF8M (316 SS)

Trim Material

304 Stainless Steel, 316 Stainless Steel

Sealing Material

PTFE (Polytetrafluoroethylene), RPTFE (Reinforced PTFE)

Connection Type

Flanged

Flange Standards

GB/T9113, JB/T821, ASME/ANSI B16.5a

Actuation Type

Pneumatic

Configuration

135° Y-Type Three-Way
